Repeated Holdout method

timecave.validation_methods.OOS.RepeatedHoldout(ts, fs=1, iterations=5, splitting_interval=[0.7, 0.8], seed=0)

Bases: BaseSplitter

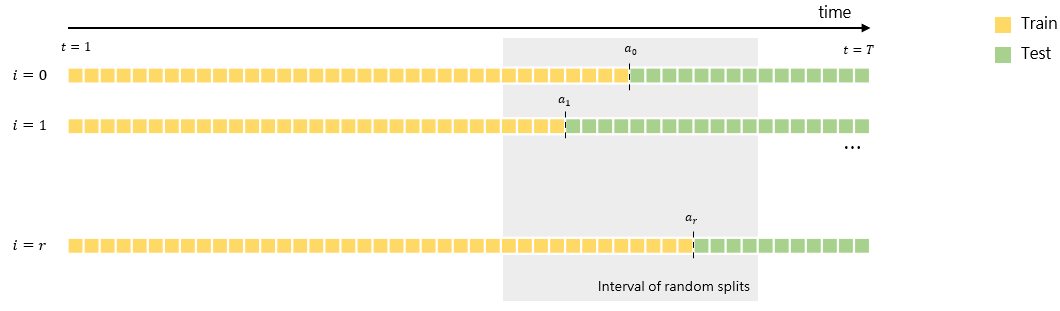

Implements the Repeated Holdout method.

This class implements the Repeated Holdout method. This is essentially an extension of the classic Holdout method, as it simply applies this method multiple times with a randomised splitting point. At every iteration, this point is chosen at random from an interval of values specified by the user. For this purpose, our implementation uses a uniform distribution, though, in theory, any continuous distribution could be used.

Parameters:

Name	Type	Description	Default
ts	ndarray | Series	Univariate time series.	required
fs	float | int	Sampling frequency (Hz).	1
iterations	int	Number of iterations that should be performed.	5
splitting_interval	list[int | float]	Interval from which the splitting point will be drawn. If the values are integers, they are interpreted as indices. Otherwise, they are regarded as the minimum and maximum allowable sizes for the training set.	[0.7, 0.8]
seed	int	Random seed.	0

Attributes:

Name	Type	Description
n_splits	int	The number of splits.
sampling_freq	int | float	The series' sampling frequency (Hz).

Methods:

Name	Description
split	Split the time series into training and validation sets.
info	Provide additional information on the validation method.
statistics	Compute relevant statistics for both training and validation sets.
plot	Plot the partitioned time series.

Raises:

Type	Description
TypeError	If the iterations parameter is not an integer.
ValueError	If the iterations parameter is not positive.
TypeError	If the splitting interval is not a list.
ValueError	If the splitting interval list does not contain two values.

See also

Holdout: The classic Holdout method.

Notes

The Repeated Holdout method is an extension of the classic Holdout method. Essentially, the Holdout method is applied multiple times, and an average of the error on the validation set is used as an estimate of the model's true error. At every iteration, the splitting point (and therefore the training and validation set sizes) is computed randomly from an interval of values specified by the user.

Compared to the classic Holdout method, it has a greater computational cost, though, depending on the number of iterations and the prediction model, this may be negligible. For more details on this method, the reader should refer to [1].

References

1

Vitor Cerqueira, Luis Torgo, and Igor Mozetiˇc. Evaluating time series fore- casting models: An empirical study on performance estimation methods. Machine Learning, 109(11):1997–2028, 2020.

Source code in timecave/validation_methods/OOS.py

def __init__(
    self,
    ts: np.ndarray | pd.Series,
    fs: float | int = 1,
    iterations: int = 5,
    splitting_interval: list[int | float] = [0.7, 0.8],
    seed: int = 0,
) -> None:

    self._check_iterations(iterations)
    self._check_splits(splitting_interval)
    super().__init__(iterations, ts, fs)
    self._iter = iterations
    self._interval = self._convert_interval(splitting_interval)
    self._seed = seed
    self._splitting_ind = self._get_splitting_ind()

    return

info()

Provide some basic information on the training and validation sets.

This method displays the average, minimum and maximum validation set sizes.

Examples:

>>> import numpy as np
>>> from timecave.validation_methods.OOS import RepeatedHoldout
>>> ts = np.ones(10);
>>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.9]);
>>> splitter.info();
Repeated Holdout method
-----------------------
Time series size: 10 samples
Average validation set size: 3.4 samples (34.0 %)
Maximum validation set size: 4 samples (40.0 %)
Minimum validation set size: 3 samples (30.0 %)

Source code in timecave/validation_methods/OOS.py

def info(self) -> None:
    """
    Provide some basic information on the training and validation sets.

    This method displays the average, minimum and maximum validation set sizes.

    Examples
    --------
    >>> import numpy as np
    >>> from timecave.validation_methods.OOS import RepeatedHoldout
    >>> ts = np.ones(10);
    >>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.9]);
    >>> splitter.info();
    Repeated Holdout method
    -----------------------
    Time series size: 10 samples
    Average validation set size: 3.4 samples (34.0 %)
    Maximum validation set size: 4 samples (40.0 %)
    Minimum validation set size: 3 samples (30.0 %)
    """

    mean_size = self._n_samples - self._splitting_ind.mean()
    min_size = self._n_samples - self._splitting_ind.max()
    max_size = self._n_samples - self._splitting_ind.min()

    mean_pct = np.round(mean_size / self._n_samples, 4) * 100
    max_pct = np.round(max_size / self._n_samples, 4) * 100
    min_pct = np.round(min_size / self._n_samples, 4) * 100

    print("Repeated Holdout method")
    print("-----------------------")
    print(f"Time series size: {self._n_samples} samples")
    print(f"Average validation set size: {np.round(mean_size, 4)} samples ({mean_pct} %)")
    print(f"Maximum validation set size: {max_size} samples ({max_pct} %)")
    print(f"Minimum validation set size: {min_size} samples ({min_pct} %)")

plot(height, width)

Plot the partitioned time series.

This method allows the user to plot the partitioned time series. The training and validation sets are plotted using different colours.

Parameters:

Name	Type	Description	Default
height	int	The figure's height.	required
width	int	The figure's width.	required

Examples:

>>> import numpy as np
>>> from timecave.validation_methods.OOS import RepeatedHoldout
>>> ts = np.ones(100);
>>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.9]);
>>> splitter.plot(10, 10);

Source code in timecave/validation_methods/OOS.py

def plot(self, height: int, width: int) -> None:
    """
    Plot the partitioned time series.

    This method allows the user to plot the partitioned time series. The training and validation sets are plotted using different colours.

    Parameters
    ----------
    height : int
        The figure's height.

    width : int
        The figure's width.

    Examples
    --------
    >>> import numpy as np
    >>> from timecave.validation_methods.OOS import RepeatedHoldout
    >>> ts = np.ones(100);
    >>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.9]);
    >>> splitter.plot(10, 10);

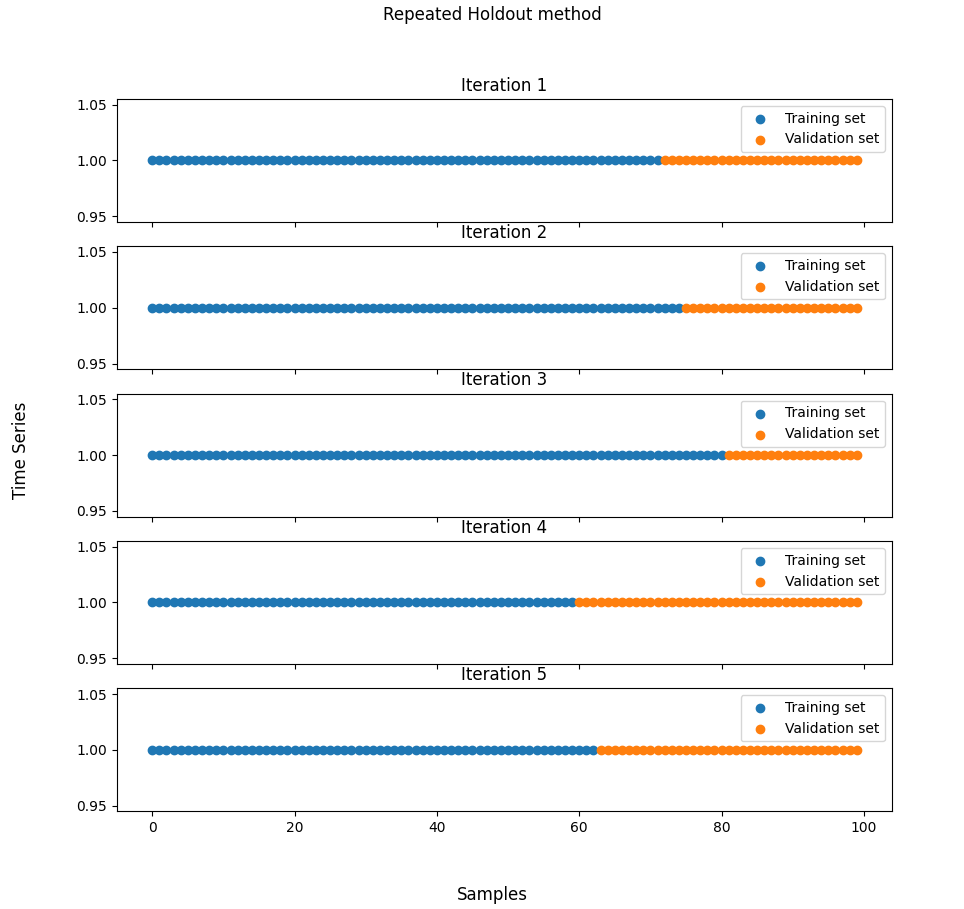

    ![Holdout_plot_image](../../../images/RepHoldout_plot.png)
    """

    fig, axs = plt.subplots(self._iter, 1, sharex=True)
    fig.set_figheight(height)
    fig.set_figwidth(width)
    fig.supxlabel("Samples")
    fig.supylabel("Time Series")
    fig.suptitle("Repeated Holdout method")

    for it, (training, validation, _) in enumerate(self.split()):

        axs[it].scatter(training, self._series[training], label="Training set")
        axs[it].scatter(
            validation, self._series[validation], label="Validation set"
        )
        axs[it].set_title("Iteration {}".format(it + 1))
        axs[it].legend()

    plt.show()

    return

split()

Split the time series into training and validation sets.

This method splits the series' indices into disjoint sets containing the training and validation indices. At every iteration, an array of training indices and another one containing the validation indices are generated. Note that this method is a generator. To access the indices, use the next() method or a for loop.

Yields:

Type	Description
ndarray	Array of training indices.
ndarray	Array of validation indices.
float	Used for compatibility reasons. Irrelevant for this method.

Examples:

>>> import numpy as np
>>> from timecave.validation_methods.OOS import RepeatedHoldout
>>> ts = np.ones(100);

If the splitting interval consists of two floats, the method assumes they define the minimum and maximum training set sizes:

>>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.8]);
>>> for ind, (train, val, _) in enumerate(splitter.split()):
...
...     print(f"Iteration {ind+1}");
...     print(f"# training samples: {train.shape[0]}");
...     print(f"# validation samples: {val.shape[0]}");
Iteration 1
# training samples: 72
# validation samples: 28
Iteration 2
# training samples: 75
# validation samples: 25
Iteration 3
# training samples: 60
# validation samples: 40
Iteration 4
# training samples: 63
# validation samples: 37
Iteration 5
# training samples: 63
# validation samples: 37

If two integers are specified instead, they will be regarded as indices.

>>> splitter = RepeatedHoldout(ts, splitting_interval=[80, 95]);
>>> for ind, (train, val, _) in enumerate(splitter.split()):
...
...     print(f"Iteration {ind+1}");
...     print(f"# training samples: {train.shape[0]}");
...     print(f"# validation samples: {val.shape[0]}");
Iteration 1
# training samples: 92
# validation samples: 8
Iteration 2
# training samples: 85
# validation samples: 15
Iteration 3
# training samples: 80
# validation samples: 20
Iteration 4
# training samples: 83
# validation samples: 17
Iteration 5
# training samples: 91
# validation samples: 9

Source code in timecave/validation_methods/OOS.py

def split(self) -> Generator[tuple[np.ndarray, np.ndarray, float], None, None]:
    """
    Split the time series into training and validation sets.

    This method splits the series' indices into disjoint sets containing the training and validation indices.
    At every iteration, an array of training indices and another one containing the validation indices are generated.
    Note that this method is a generator. To access the indices, use the `next()` method or a `for` loop.

    Yields
    ------
    np.ndarray
        Array of training indices.

    np.ndarray
        Array of validation indices.

    float
        Used for compatibility reasons. Irrelevant for this method.

    Examples
    --------
    >>> import numpy as np
    >>> from timecave.validation_methods.OOS import RepeatedHoldout
    >>> ts = np.ones(100);

    If the splitting interval consists of two floats, the method assumes they define the minimum and maximum training set sizes:

    >>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.8]);
    >>> for ind, (train, val, _) in enumerate(splitter.split()):
    ...
    ...     print(f"Iteration {ind+1}");
    ...     print(f"# training samples: {train.shape[0]}");
    ...     print(f"# validation samples: {val.shape[0]}");
    Iteration 1
    # training samples: 72
    # validation samples: 28
    Iteration 2
    # training samples: 75
    # validation samples: 25
    Iteration 3
    # training samples: 60
    # validation samples: 40
    Iteration 4
    # training samples: 63
    # validation samples: 37
    Iteration 5
    # training samples: 63
    # validation samples: 37

    If two integers are specified instead, they will be regarded as indices.

    >>> splitter = RepeatedHoldout(ts, splitting_interval=[80, 95]);
    >>> for ind, (train, val, _) in enumerate(splitter.split()):
    ...
    ...     print(f"Iteration {ind+1}");
    ...     print(f"# training samples: {train.shape[0]}");
    ...     print(f"# validation samples: {val.shape[0]}");
    Iteration 1
    # training samples: 92
    # validation samples: 8
    Iteration 2
    # training samples: 85
    # validation samples: 15
    Iteration 3
    # training samples: 80
    # validation samples: 20
    Iteration 4
    # training samples: 83
    # validation samples: 17
    Iteration 5
    # training samples: 91
    # validation samples: 9
    """

    for ind in self._splitting_ind:

        training = self._indices[:ind]
        validation = self._indices[ind:]

        yield (training, validation, 1.0)

statistics()

Compute relevant statistics for both training and validation sets.

This method computes relevant time series features, such as mean, strength-of-trend, etc. for both the whole time series, the training set and the validation set. It can and should be used to ensure that the characteristics of both the training and validation sets are, statistically speaking, similar to those of the time series one wishes to forecast. If this is not the case, using the validation method will most likely lead to a poor assessment of the model's performance.

Returns:

Type	Description
DataFrame	Relevant features for the entire time series.
DataFrame	Relevant features for the training set.
DataFrame	Relevant features for the validation set.

Raises:

Type	Description
ValueError	If the time series is composed of less than three samples.

Examples:

>>> import numpy as np
>>> from timecave.validation_methods.OOS import RepeatedHoldout
>>> ts = np.hstack((np.ones(5), np.zeros(5)));
>>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.9]);
>>> ts_stats, training_stats, validation_stats = splitter.statistics();
Frequency features are only meaningful if the correct sampling frequency is passed to the class.
>>> ts_stats
   Mean  Median  Min  Max  Variance  P2P_amplitude  Trend_slope  Spectral_centroid  Spectral_rolloff  Spectral_entropy  Strength_of_trend  Mean_crossing_rate  Median_crossing_rate
0   0.5     0.5  0.0  1.0      0.25            1.0    -0.151515           0.114058               0.5           0.38717            1.59099            0.111111              0.111111
>>> training_stats
       Mean  Median  Min  Max  Variance  P2P_amplitude  Trend_slope  Spectral_centroid  Spectral_rolloff  Spectral_entropy  Strength_of_trend  Mean_crossing_rate  Median_crossing_rate
0  0.833333     1.0  0.0  1.0  0.138889            1.0    -0.142857           0.125000          0.500000          0.792481           0.931695            0.200000              0.200000
0  0.714286     1.0  0.0  1.0  0.204082            1.0    -0.178571           0.094706          0.428571          0.556506           1.212183            0.166667              0.166667
0  0.833333     1.0  0.0  1.0  0.138889            1.0    -0.142857           0.125000          0.500000          0.792481           0.931695            0.200000              0.200000
0  0.714286     1.0  0.0  1.0  0.204082            1.0    -0.178571           0.094706          0.428571          0.556506           1.212183            0.166667              0.166667
0  0.714286     1.0  0.0  1.0  0.204082            1.0    -0.178571           0.094706          0.428571          0.556506           1.212183            0.166667              0.166667
>>> validation_stats
   Mean  Median  Min  Max  Variance  P2P_amplitude  Trend_slope  Spectral_centroid  Spectral_rolloff  Spectral_entropy  Strength_of_trend  Mean_crossing_rate  Median_crossing_rate
0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0

Source code in timecave/validation_methods/OOS.py

def statistics(self) -> tuple[pd.DataFrame]:
    """
    Compute relevant statistics for both training and validation sets.

    This method computes relevant time series features, such as mean, strength-of-trend, etc. for both the whole time series, the training set and the validation set.
    It can and should be used to ensure that the characteristics of both the training and validation sets are, statistically speaking, similar to those of the time series one wishes to forecast.
    If this is not the case, using the validation method will most likely lead to a poor assessment of the model's performance.

    Returns
    -------
    pd.DataFrame
        Relevant features for the entire time series.

    pd.DataFrame
        Relevant features for the training set.

    pd.DataFrame
        Relevant features for the validation set.

    Raises
    ------
    ValueError
        If the time series is composed of less than three samples.

    Examples
    --------
    >>> import numpy as np
    >>> from timecave.validation_methods.OOS import RepeatedHoldout
    >>> ts = np.hstack((np.ones(5), np.zeros(5)));
    >>> splitter = RepeatedHoldout(ts, splitting_interval=[0.6, 0.9]);
    >>> ts_stats, training_stats, validation_stats = splitter.statistics();
    Frequency features are only meaningful if the correct sampling frequency is passed to the class.
    >>> ts_stats
       Mean  Median  Min  Max  Variance  P2P_amplitude  Trend_slope  Spectral_centroid  Spectral_rolloff  Spectral_entropy  Strength_of_trend  Mean_crossing_rate  Median_crossing_rate
    0   0.5     0.5  0.0  1.0      0.25            1.0    -0.151515           0.114058               0.5           0.38717            1.59099            0.111111              0.111111
    >>> training_stats
           Mean  Median  Min  Max  Variance  P2P_amplitude  Trend_slope  Spectral_centroid  Spectral_rolloff  Spectral_entropy  Strength_of_trend  Mean_crossing_rate  Median_crossing_rate
    0  0.833333     1.0  0.0  1.0  0.138889            1.0    -0.142857           0.125000          0.500000          0.792481           0.931695            0.200000              0.200000
    0  0.714286     1.0  0.0  1.0  0.204082            1.0    -0.178571           0.094706          0.428571          0.556506           1.212183            0.166667              0.166667
    0  0.833333     1.0  0.0  1.0  0.138889            1.0    -0.142857           0.125000          0.500000          0.792481           0.931695            0.200000              0.200000
    0  0.714286     1.0  0.0  1.0  0.204082            1.0    -0.178571           0.094706          0.428571          0.556506           1.212183            0.166667              0.166667
    0  0.714286     1.0  0.0  1.0  0.204082            1.0    -0.178571           0.094706          0.428571          0.556506           1.212183            0.166667              0.166667
    >>> validation_stats
       Mean  Median  Min  Max  Variance  P2P_amplitude  Trend_slope  Spectral_centroid  Spectral_rolloff  Spectral_entropy  Strength_of_trend  Mean_crossing_rate  Median_crossing_rate
    0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
    0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
    0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
    0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
    0   0.0     0.0  0.0  0.0       0.0            0.0          0.0                  0               0.0               0.0                inf                 0.0                   0.0
    """

    if self._n_samples <= 2:

        raise ValueError(
            "Basic statistics can only be computed if the time series comprises more than two samples."
        )

    print("Frequency features are only meaningful if the correct sampling frequency is passed to the class.")

    full_features = get_features(self._series, self.sampling_freq)

    training_stats = []
    validation_stats = []

    # for ind in self._splitting_ind:

    #    training_feat = get_features(self._series[:ind], self.sampling_freq);
    #    validation_feat = get_features(self._series[ind:], self.sampling_freq);
    #    training_stats.append(training_feat);
    #    validation_stats.append(validation_feat);

    for training, validation, _ in self.split():

        if self._series[training].shape[0] >= 2:

            training_feat = get_features(self._series[training], self.sampling_freq)
            training_stats.append(training_feat)

        else:

            warn(
                "The training set is too small to compute most meaningful features."
            )

        if self._series[validation].shape[0] >= 2:

            validation_feat = get_features(
                self._series[validation], self.sampling_freq
            )
            validation_stats.append(validation_feat)

        else:

            warn(
                "The validation set is too small to compute most meaningful features."
            )

    training_features = pd.concat(training_stats)
    validation_features = pd.concat(validation_stats)

    return (full_features, training_features, validation_features)
